Machine Vision Inspection Scheme for Round Hardware Parts Shenzhen SPOTECK Technology Co., Ltd.
SPOTECK has been focusing on machine vision inspection for 13 years. It has a wide range of applications and many detection schemes.
More machine vision inspection schemes can be consulted by Sputac: 130 7781 5846
1. Contents and requirements of testing
Measure workpiece area:
Detection of Cylindrical Samples with Integral Height of 4*2.5mm
Content of detection:
1: Bottom detection of edge notches, holes and diameters
2: Total Height of Side Detection
3: Top test diameter, with or without holes
Note: The above detection items need to be clearly visible under the image to detect.
Detection efficiency: 200-400 pieces per minute (according to sample feeding speed).
Division of work: Subdivide the detection steps according to the detection content.
II. Equipment Composition and Major Institutions
Overall Composition: Dimension: 900*800*1850 mm
Model: SP_302C
1:SPOTECK Visual Detection Software
2: industrial computer
3: display 19 inches
4: Industrial cameras: 3 sets, bottom and top detection diameter, with or without holes, edge incisions. Side detection height
5: Industrial Lens: 3 FA Industrial Cameras
6: professional glass tray
7: solenoid valve
8: reducer
9: vibration cabinet
10: Feeding equipment (Vibrating disc, Direct Vibration, Controller).

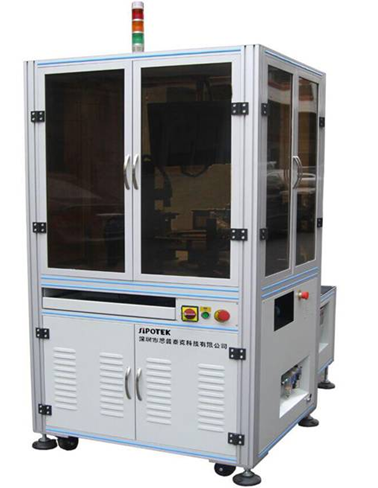

II.1: 3-D Stereogram of Equipment Appearance
3:1 Bottom Detection Method

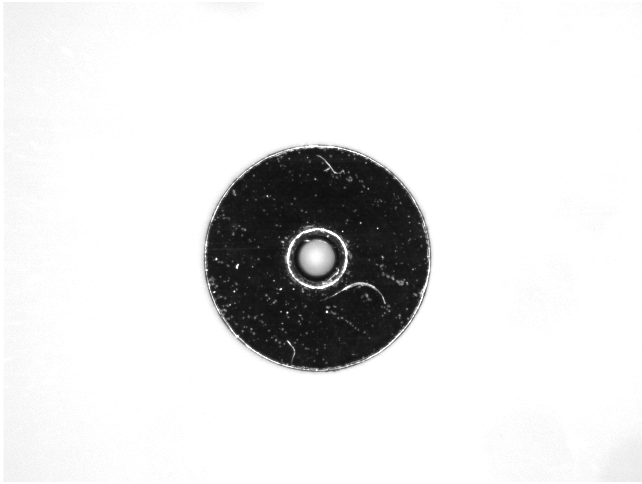

Bottom detection effect original picture:
3:1 Bottom Detection Method

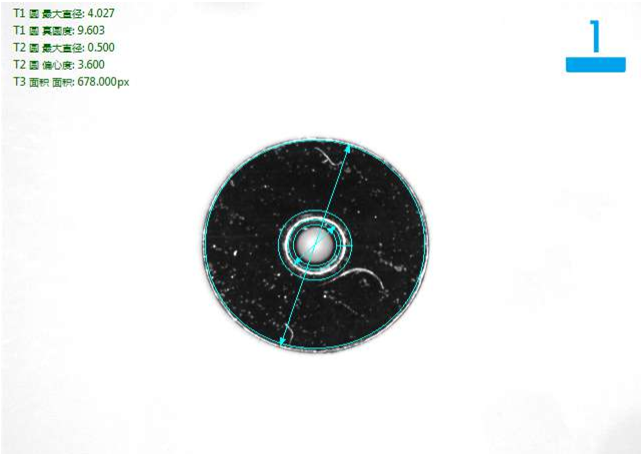

Bottom Test Fine Product Analysis Chart: OK
3:1 Bottom Detection Method

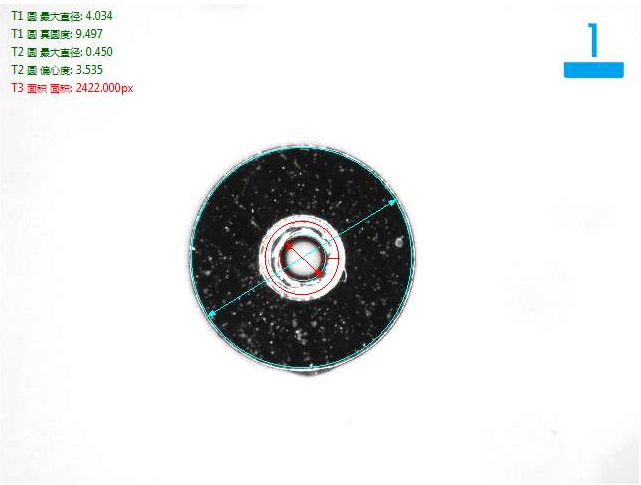

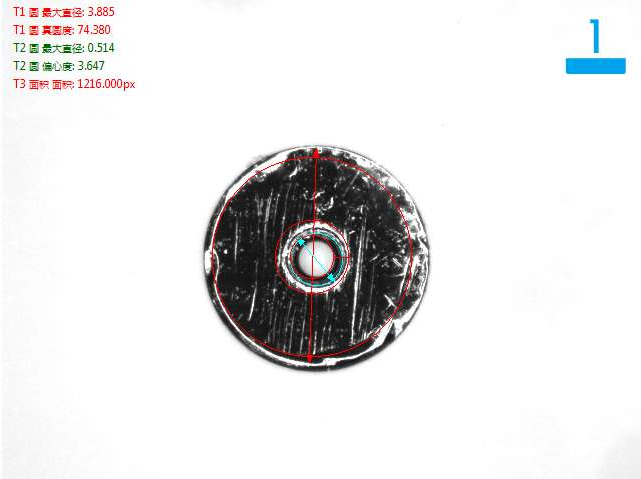

Bottom detection edge incision defect analysis chart:NG
3:1 Bottom Detection Method

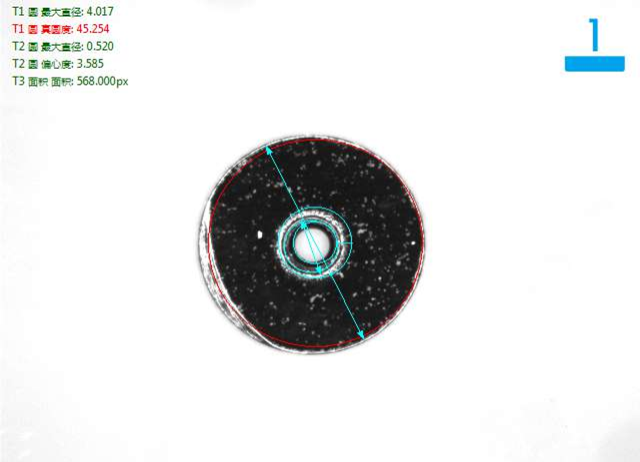

Bottom Inspection Inner Hole Excessive Bad Product Analysis Chart:NG
3:1 Bottom Detection Method
Bottom defective product analysis chart: NG
3:2 Side Detection Method

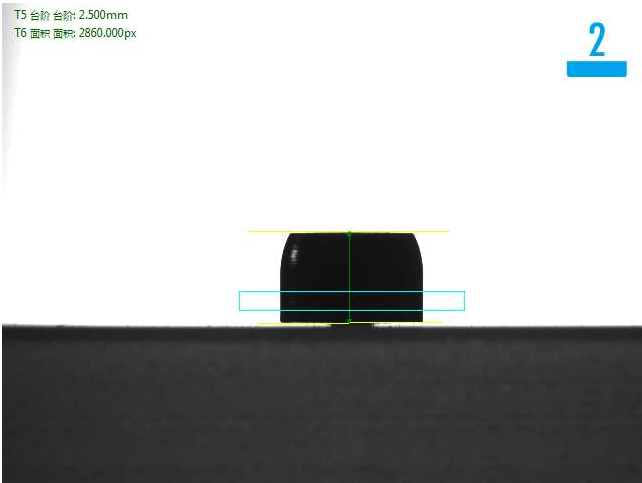

Analysis Chart of Fine Products for Side Detection: OK
3:2 Side Detection Method

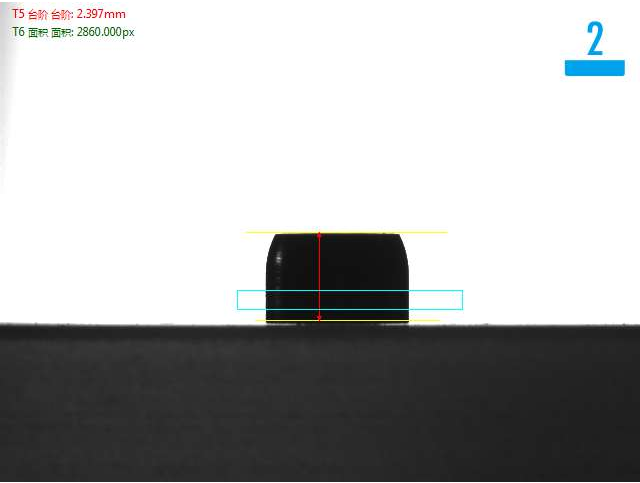

Analysis Chart of Highly Bad Products for Side Detection: NG
3:3 Top Detection Method

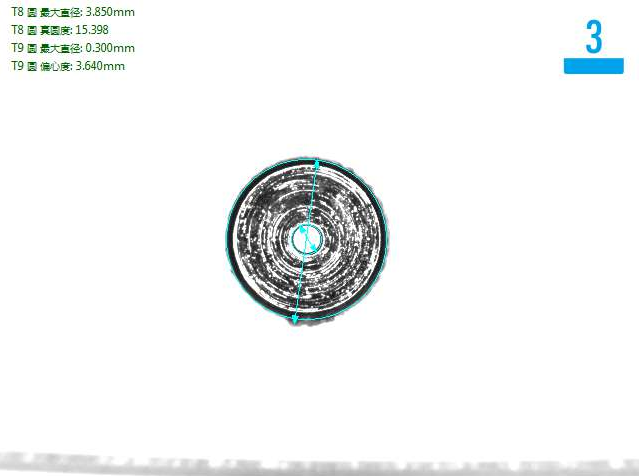

Top test product analysis chart: OK
IV. System Installation Requirements:
Inspection space for equipment placement: Separately installing SP visual inspection system at the pipeline side, it is necessary to ensure that there is enough space to install the equipment.
Ambient temperature: 0-50 degrees Celsius;
Air humidity: below 90% RH;
Electronic jamming: Provide equipment with less electronic jamming.
Power supply: 220V, 50Hz AC, less than 1KVA power consumption
Above is the machine vision inspection scheme for circular hardware fittings. Please consult Spotek: 13077816354 for details.
