Machine Vision Inspection Scheme for USB Interpolator Shenzhen SPOTECK Technology Co., Ltd. uuuuuuuuu
1. Contents and requirements of testing
Measure workpiece area:
Appearance Detection of Planar Samples with Width of 11mm*Length of 17.5mm
Content of detection:
1: Detection of Oil Pollution and Miscellaneous Colors on the Bottom
2: Side Detection of Height and Width
3: Top detection of welding angle, electroplating and oil stain
Note: The above detection items need to be clearly visible under the image to detect.
Detection efficiency: 200-400 pieces per minute (according to sample feeding speed).
Division of work: Subdivide the detection steps according to the detection content.
II. Equipment Composition and Major Institutions
Overall Composition: Dimension: 900*800*1850 mm
Model: SP_302C
1:SPOTECK Visual Detection Software
2: industrial computer
3: display 19 inches
4: Industrial cameras: 3 sets, bottom detection plane noise, oil pollution. Side detection height. Top Detection of Weld Angle Plating and Oil Pollution
5: Industrial Lens: 3 FA Industrial Cameras
6: professional glass tray
7: solenoid valve
8: reducer
9: vibration cabinet
10: Feeding equipment (Vibrating disc, Direct Vibration, Controller).
II.1: 3-D Stereogram of Equipment Appearance

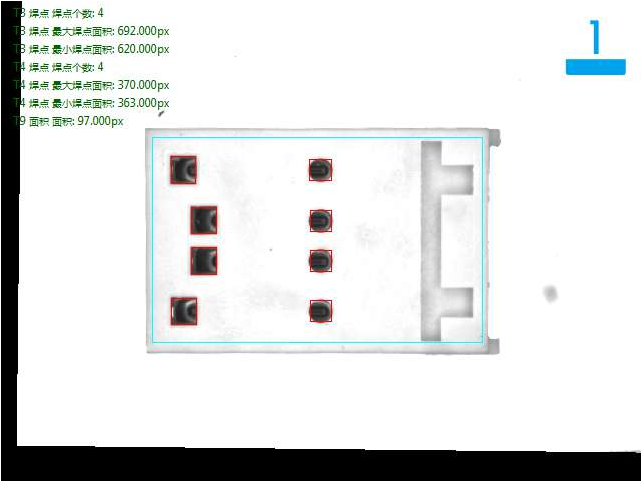

3:1 Bottom Detection Method
Bottom Test Fine Product Analysis Chart: OK

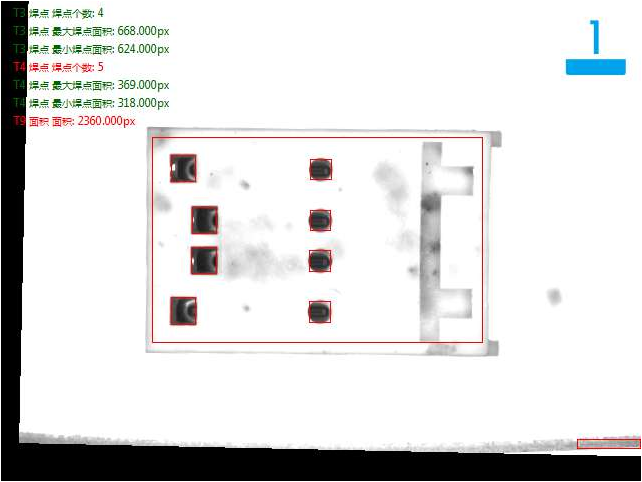

3:1 Bottom Detection Method
Bottom Detection Oil Pollution Fine Product Analysis Chart:NG

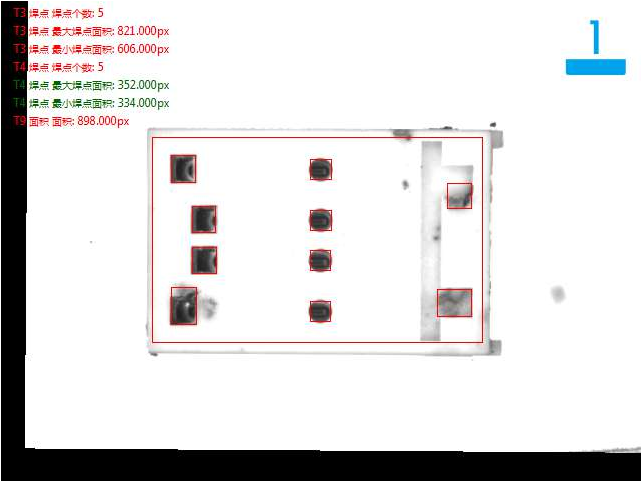

3:1 Bottom Detection Method
Bottom Detection of Miscellaneous and Bad Products Analysis Chart:NG

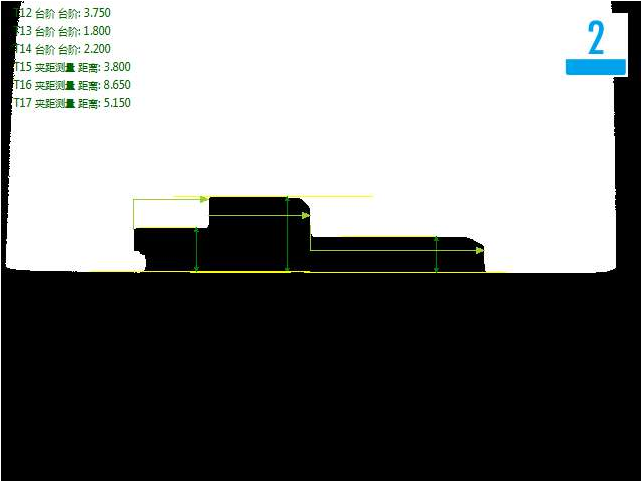

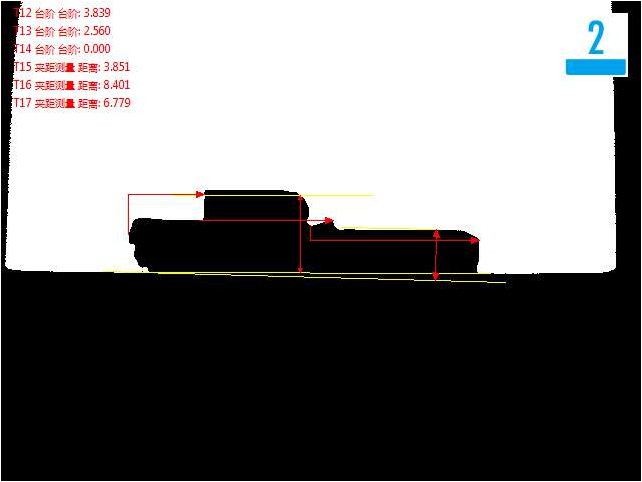

3:2 Side Detection Method
Analysis Chart of Fine Products for Side Detection: OK
3:2 Side Detection Method
Analysis Chart of Non-performing Products for Side Detection: NG

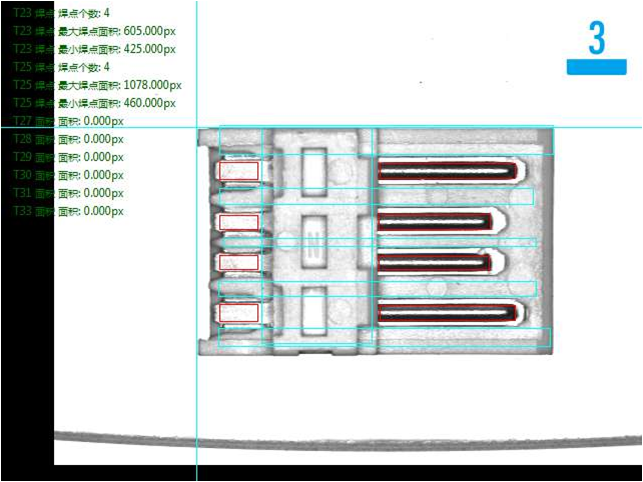

3:3 Top Detection Method
Top test product analysis chart: OK

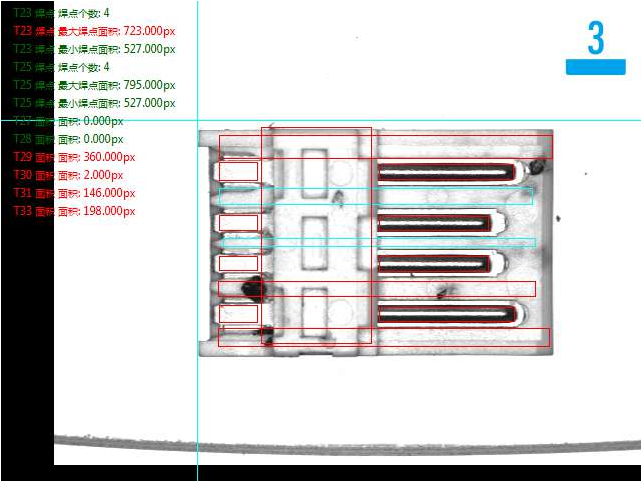

3:3 Top Detection Method
Top Detection Oil Pollution Bad Product Analysis Chart:NG

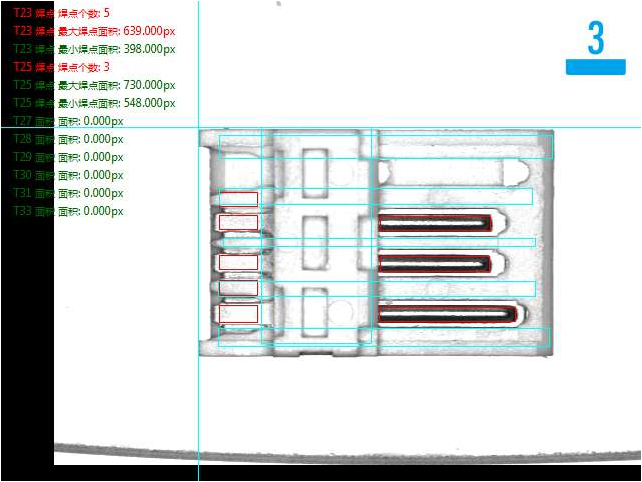

3:3 Top Detection Method
Top test needle defective product analysis chart:NG

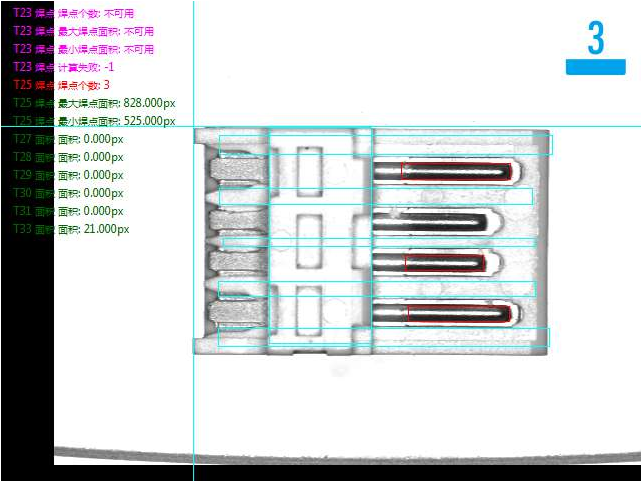

3:3 Top Detection Method
Needle defect analysis chart at top: NG
3:3 Top Detection Method
Top Detection Electroplating Bad Product Analysis Chart:NG
IV. System Installation Requirements:
Inspection space for equipment placement: Separately installing SP visual inspection system at the pipeline side, it is necessary to ensure that there is enough space to install the equipment.
Ambient temperature: 0-50 degrees Celsius;
Air humidity: below 90% RH;
Electronic jamming: Provide equipment with less electronic jamming.
Power supply: 220V, 50Hz AC, less than 1KVA power consumption, air pressure 0.35-0.7MPa
